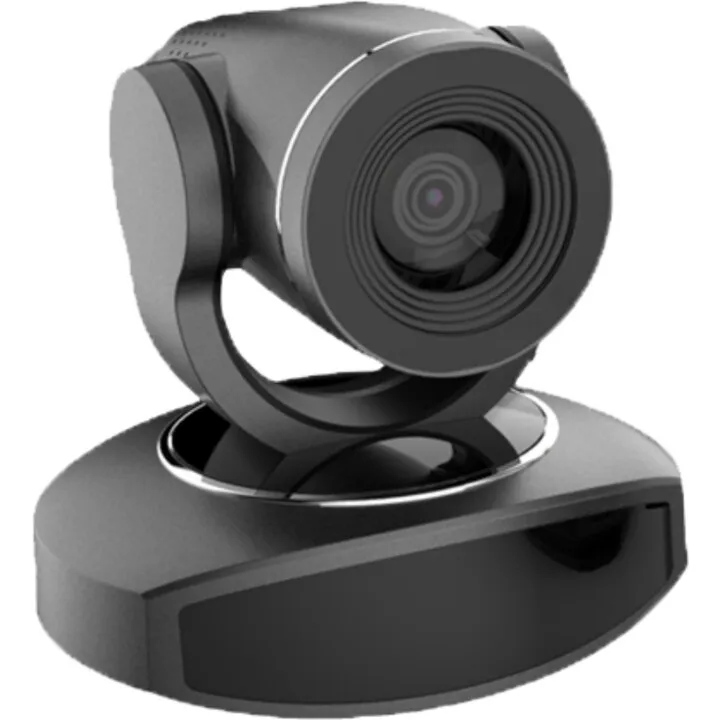

| | VA200-V - kamera |
| Sensor | 1/2.8 " high quality HD CMOS sensor |
| Effective Pixels | 2.07M, 16:9 |
| Video Formát | 1920×1080P 30 fps/25fps; 1280×720P 30fps/25fps; 1024×576P 30fps/25fps; 960×540P 30fps/25fps; 800×448P 30fps/25fps; 640×360P 30fps/25fps; 320×176P 30fps/25fps |
| Optický zoom | 10× Optical Zoom f=4,7-47 mm |
| Šířka záběru | 68,8° (Wide) - 8,8°(Tele) |
| Světelnost objektivu | F1.8 - F3 |
| Digitalní Zoom | 10× |
| Minimální osvícení čipu | 0,5 Lux (F1,8, AGC ON) |
| DNR | 2D a 3D DNR |
| White Balance | Auto/Manual/One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Ostření | Auto/Manual/One Push |
| Clona/Elektronická závěrka | Auto/Manual |
| BLC | ON/OFF |
| WDR | OFF/Dynamic level adjustment |
| Video úpravy | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55dB |
| Úhel rotace | Pan: -125° - +125°, Tilt:-30° - +90° |
| Rychlosti pohybu | Pan: 0.1 - 65°/sec, Tilt:0.1 - 35°/sec |
| Rychlost přesunu mezi presety | Pan: 65°/sec, Tilt: 35°/sec |
| Rozměry | 151,65mm×131,25mm×154,5mm (L×W×H) |
| | VA200-A - audio jednotka |
| Technické parametry | Acoustic Echo cancellation (AEC): >65dB Echo length cancellation: >400ms Bidirectional noise compression (NC): <25dB Automatic Direction finding Technology of Intelligent microphone (EMI) Automatic gain control (AGC) |
| Snímání zvuku | Microphone frequency response: 100Hz-22KHz Speaker frequency response: 100Hz-22KHz Speaker volume: 95dB at the most Microphone sound-pickup diameter: 6 meters, 360 degrees full range |
| Bluetooth | Bluetooth devices available |
| IR ovládání | Angle: 360° Distance: 10m IR Transparent transmission available |
| Rozměry | 200mm×200mm×55.9mm (L×W×H) |
| | VA200-H - propojovací jednotka |
| Interface | Mini DIN6 ×2 Power interface ×1 Power switch ×1 Mini USB interface ×1 |
| Napájení | EC3800 plug (DC12V) Adapter input AC110V-AC220V, output DC12V/1.5A |
| Datové rozhraní | Mini DIN6 data line ×2 Length: 5m (10m/15m for options) |
| USB kabel | USB2.0 cable (3m) |
| Kompatibilita | Support Windows, Android, iOS and Linux Drive-free automatic recognition of cameras, microphones and speakers Compatible with Zoom, Lynch, Vidyo, etc. |
| Rozměry | 120mm×74mm×34.5mm (L×W×H) |
| Příslušenství | Napájecí adaptér, USB2.0 Kabel, Dálkový ovladač, dva propojovací kabely |
