| Configuration: | 2-Way |
| | |
| System Type: | Active Monitor |
| High-Frequency: | 1" Diamond-like carbon-coated titanium tweeter |
| Low-Frequency: | 4" non-woven carbon Woofer |
| | |
| Freq. Range (-10dB): | 55Hz - 47kHz |
| | |
| Crossover Freq. (Acoustic): | 2.4kHz |
| | |
| Average Beamwidth: | |
| Horizontal: | 130 Deg. (900Hz - 9kHz) |
| Vertical: | 113 Deg. (900Hz - 9kHz) |
| | |
| Max Peak SPL (Limiter Engaged) per pair: | 109 dB |
| | |
| Amplifiers | |
| System Power: | 103 Watts |
| Amplifier Distortion: | <0.2%THD+N 20Hz - 20kHz (-3dB Max Power) |
| Input Sensitivity: | +4dBu Balanced / -10dBV Unbalanced |
| SNR (Signal to Noise Ratio): | >92dB |
| | |

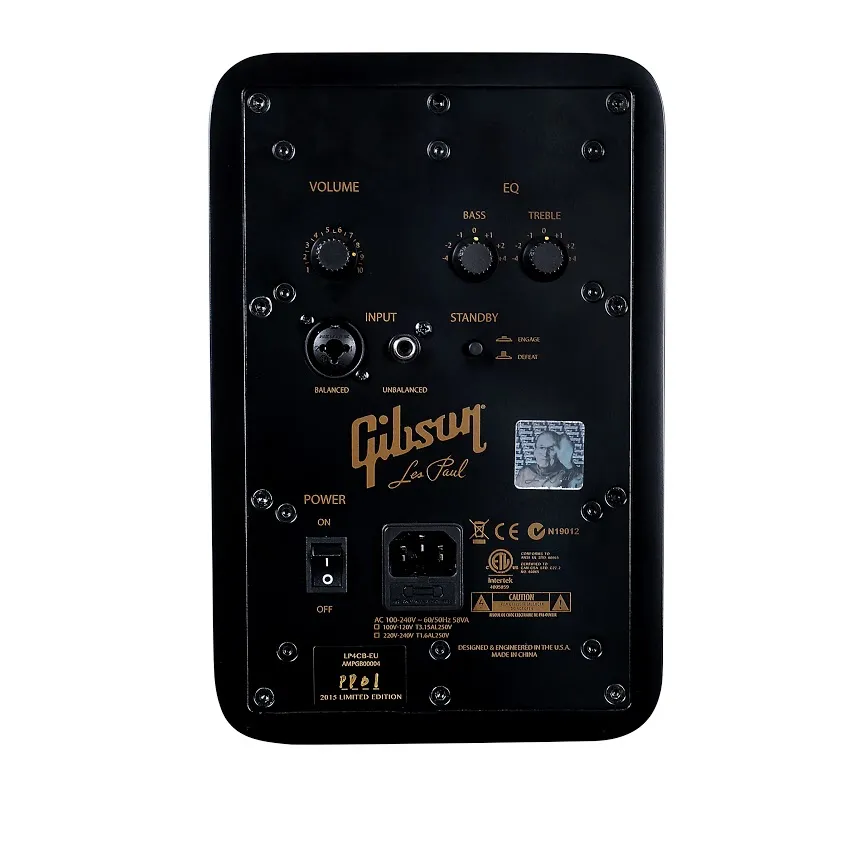

| Controls | |
| System Volume: | System Volume (1-10) |
| Bass Level Adjust Switch: | Bass Level Adjust (-4dB, -2dB, -1dB, 0, +1dB, +2dB, +4dB) |
| Treble Level Adjust Switch: | Treble Level Adjust (-4dB, -2dB, -1dB, 0, +1dB, +2dB, +4dB) |
| | |
| Connectors: | |
| Input: | RCA, Balanced TRS, Balanced XLR |
| | |
| AC Fuse: | 100-120VAC (T3.15AL, 250V) / 220-240VAC (T1.6AL, 250V) |
| | |
| AC Power Consumption | |
| Idle (Standby) after 30 min.: | <0.5 Watts |
| | |
| Enclosure Construction: | 15mm MDF / Flame Maple Front |
| | |
| Dimensions (H x W x D): | 258mm x 166mm x 241mm / 10.16" x 6.54" x 9.49" |
| | |
| Weight: | 4.8kg / 10.5 lbs. |
