| podporované rozlišení HDMI vstupu | 4096x2160p/ 3840x2160p 23.98/24/25/29.97/30 /50/59.94/60 (Pouze pro vstup HDMI 1 a HDMI 2)
1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080i 25/29.97/30
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p 50/100
720x576i 25/50
720x480p 59.94/60
720x480i 29.97/30 |
| podporované vlastnosti USB kamer | Formáty: YUYV, MJPG, NV12
Rozlišení: až 1920x1080
Snímková frekvence: up to 60fps |
| bitrate | záznam 60 Mb/s MP4 via H.264/AVC, H.265/HEVC)
streaming 30 Mb/s |
| Audio vstupy | Mic/Line in: 2x 3.5mm jack, 2-channel, 48kHz, 16-bit
Audio input from HDMI port: Up to 8-channel, 192kHz, 24-bit
Audio input from USB port: Up to 8-channel, 192kHz, 24-bit
Audio input from Bluetooth device: 2-channel, 48kHz, 16-bit
Audio input from phone
Audio from SRT/RTMP/RTSP/NDI stream
Audio embedded in video files
Audio from a webpage
Background music (BGM): MP3, M4A, WAV files
Audio from GFXs: webpage, NDI, App and video
Audio from an App |
| Video výstupy | Streaming
Output content: Program, HDMI 1/2/3/4, Webcam 1/2, Multiview
Codec: H.264, H.265
Resolution: 2160p, 1440p, 1080p, 720p, 540p, 360p*
* 360p is only available for NDI
Frame rate: 60/59.94/50/30/29.97/25/24/23.98/15 fps (Encoding options change along with the frame rate of the show.)
Bitrate:
NDI HX3: up to 110Mbps, down to 3Mbps
Others: up to 120Mbps, down to 256kbps
Key frame interval: customizable
Profile:
H.264: High profile, Main profile, Baseline profile
H.265: Main profile
Level:
H.264: 5.2, 5.1, 5.0, 4.2, 4.1, 4.0, 3.2, 3.1, 3.0
H.265: 6.1, 6.0, 5.2, 5.1, 5.0, 4.1, 4.0, 3.1, 3.0
Bitrate mode: VBR, CBR
Color space: BT.709, BT.601
Recording:
Output content: Program, HDMI 1/2/3/4, Webcam 1/2, Multiview, Stream, Phone Camera
Codec: H.264, H.265
Resolution: 2160p, 1440p, 1080p, 720p, 540p
Frame rate: 60/59.94/50/30/29.97/25/24/23.98/15 fps (Encoding options change along with the frame rate of the show.)
Bitrate: up to 120Mbps, down to 256kbps
Key frame interval: customizable
Profile:
H.264: High profile, Main profile, Baseline profile
H.265: Main profile
Level:
H.264: 5.2, 5.1, 5.0, 4.2, 4.1, 4.0, 3.2, 3.1, 3.0
H.265: 6.1, 6.0, 5.2, 5.1, 5.0, 4.1, 4.0, 3.1, 3.0
Bitrate mode: VBR, CBR
Color space: BT.709, BT.601
File format: MOV/MP4
USB-C OUT
Port: 1* USB 3.0 Type-C port
Output mode: UVC 1.1/UAC 1.0, DP-OUT
Output content: Program, Preview, Multi-view, Mirror, Loop HDMI 1/2/3/4, Loop Webcam 1/2, Loop Stream (including Phone Camera), App (only for DP-OUT mode)
Resolution: 3840x2160, 2560x1440, 1920x1080, 1280x720, 2160x3840, 1440x2560, 1080x1920, 720x1280
Frame rate: 60/59.94/50/30/29.97/25/24/23.98 fps
Sampling format: RGB24, YUYV, NV12, MJPEG

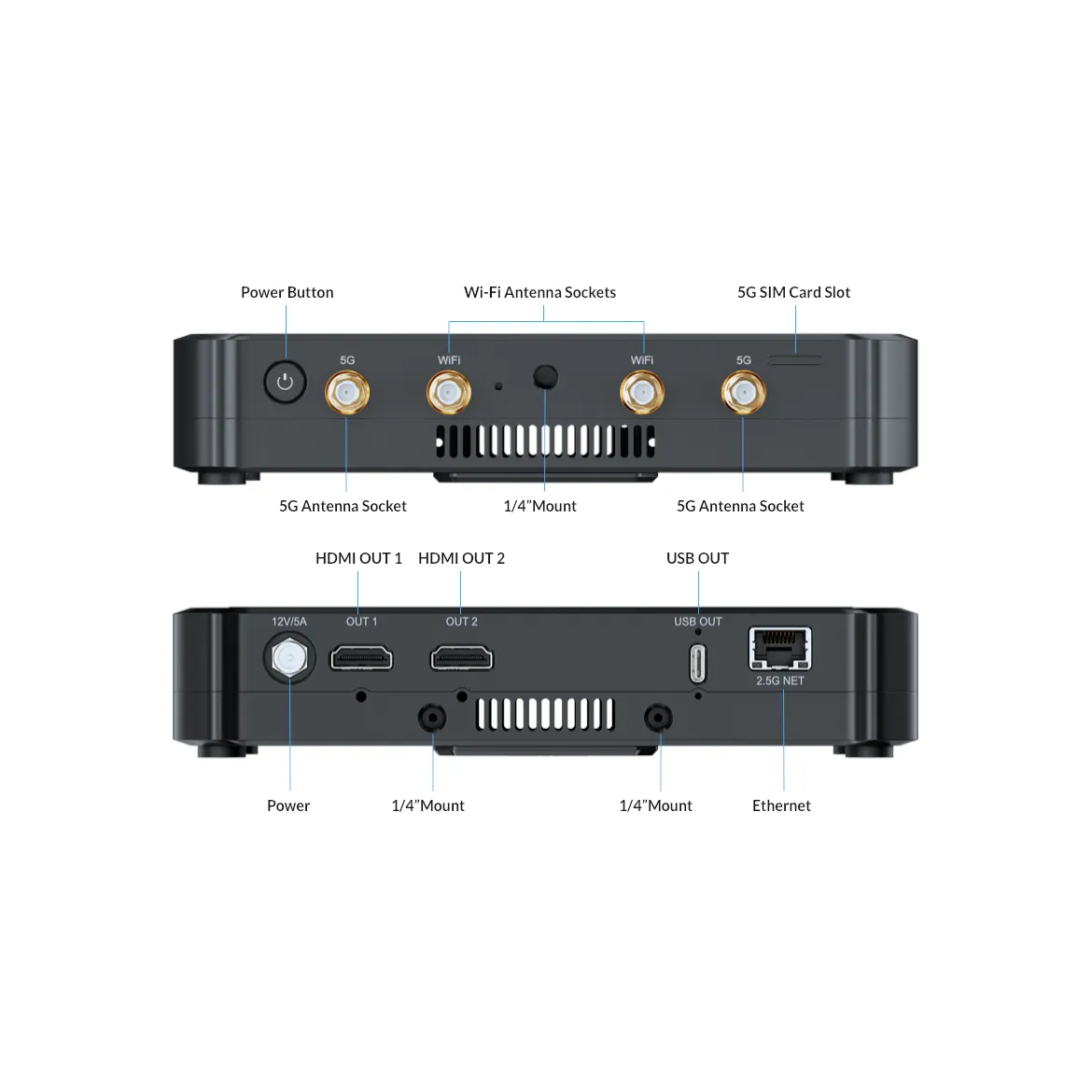

HDMI OUT
Port: 2* HDMI 2.0 Type-A port
Source: Program, Preview, Multi-view, Mirror, Loop HDMI 1/2/3/4, Loop Webcam 1/2, Loop Stream (including Phone Camera), App
Resolution: 3840x2160, 2560x1440, 1920x1080, 1280x720
Frame rate: 60/59.94/50/30/29.97/25/24/23.98 fps
Sampling format: RGB 4:4:4, NV12 |
| Audio výstupy | - Streaming:
- Output audio content: Program, HDMI 1/2/3/4, Mic 1/2, USB mic
- Format: 2-channel, 16-bit, 48kHz, aac, 64kbps/96kbps/128kbps
- Recording:
- Output audio content: Program, HDMI 1/2/3/4, Mic 1/2, USB mic, stream, phone camera
- Format: 2-channel, 16-bit, 48kHz, aac, 64kbps/96kbps/128kbps
- Headphone (3.5mm jack):
- Output audio content: Monitor
- Format: 2-channel, 48kHz, 16-bit
- Bluetooth device:
- Output audio content: Monitor
- Format: 2-channel, 48kHz, 16-bit
- USB-A port:
- Output audio content: Monitor
- Format: 2-channel, 48kHz, 16-bit/24-bit/32-bit
- USB-C 3.0 port:
- Output audio content: Monitor
- Format: 2-channel, 48kHz, 16-bit
- USB Out port:
- Output audio content: Program, Preview, HDMI 1/2/3/4, Webcam 1/2, Stream (including Phone Camera), App (only for DP-OUT mode)
- Format: 2-channel, 48kHz, 16-bit
- HDMI OUT 1/2 port:
- Output audio content: Program, Preview, HDMI 1/2/3/4, Webcam 1/2, Stream (including Phone Camera), App
- Format: 2-channel, 48kHz, 16-bit
|
| Vlastnosti USB portů | Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc.
Connect to a USB modem
Connect to a mobile phone for USB tethering to share the phone’s mobile data connection
Connect to a USB flash drive - To transfer video, picture, audio and other media files, firmware update files, log files, etc.
- Supported system format: FAT32, exFAT and NTFS
Connect to a USB keyboard for shortcuts |
| Vlastnosti USB výstupu | -
Normal mode: Connect to USB devices, such as USB A/V devices, USB keyboard - DP mode: Connect to an external screen
- Connection mode: Connect the device to a monitor with a USB-C to HDMI/VGA/DP adapter
- A/V display mode options: Program, Preview, Multi-view, Mirror, Loop HDMI 1/2/3/4, Loop Webcam 1/2, Loop Stream (including Phone Camera), App
- Image rotation: Rotate 90° to left, or rotate 90° to right
- Supports using an external touchscreen to control the device in the Mirror mode or App mode
-
MTP mode: Connect to a PC to transfer video, picture, audio and other media files, firmware update files, log files, etc. - UVC + UAC mode*: Connect to a PC to output audio and video to streaming software
- A/V display mode options: Program, Preview, Multi-view, Mirror, Loop HDMI 1/2/3/4, Loop Webcam 1/2, Loop Stream (including Phone Camera)
* To transfer video at full frame rate, please use a USB 3.0 cable to connect the USB 3.0 port of your computer. |
| Síťové vlastnosti | - Supports Ethernet, WiFi and Cellular
- Ethernet: 1x RJ45 port, 10/100/1000/2500 Mbps Base-T
- Wi-Fi: 2.4G/5G/6G, Station and Hotspot modes supported
- Cellular:
- 1* 5G SIM card slot
- USB modem supported (not supplied)
- Supports Bluetooth for audio input or output with Bluetooth devices, and also supports Bluetooth keyboard, etc.
- Supports USB tethering to share the Internet data connection of a mobile phone by connecting the phone with the device through a USB cable
|

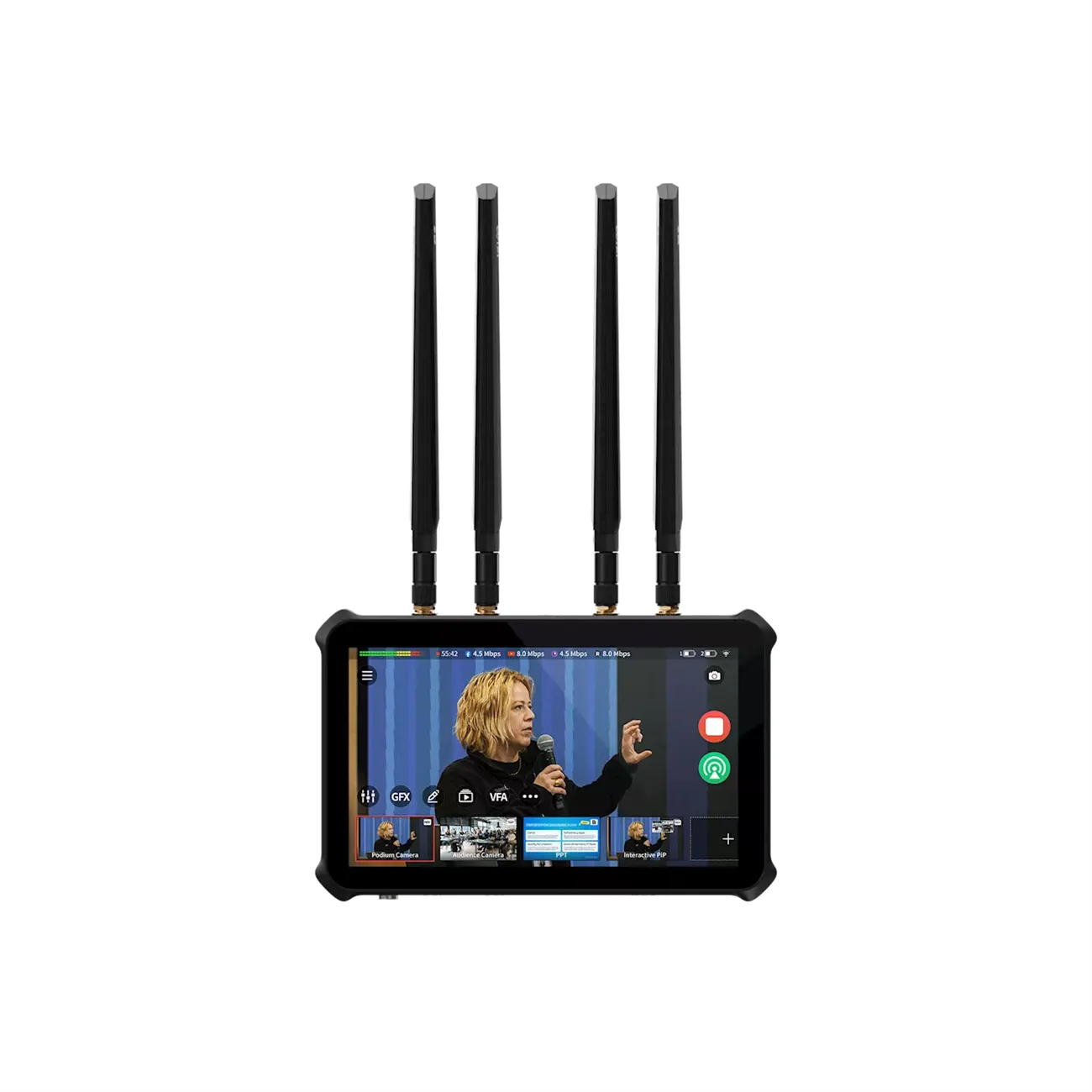

| Vestavěný displej | Size: 7"
Type: AMOLED
Aspect ratio: 16:9
Resolution (dot): 1920(W)x1080(H)
Brightness: 800nit
Contrast ratio: 100000:1
Color gamut: 100% NTSC
sRGB: 145%
DCI-P3: 105%
Color depth: 10-bit
PPI: 315
Refresh rate: 60Hz, 50Hz
Touchscreen: Capacitive
Viewing direction: All
Screen coating: Anti-fingerprint coating |
| Paměť | Local storage: 128 GB
microSD card (not supplied): FAT32 (Under 128G), NTFS, exFAT |
